A. Tacussis Sansui AU-7900 Integrated

Sansui AU-7900 Integrated Amplifier




The Sansui AU-7900, released from 1975 to 1977 was the little brother to the release AU-900/11000 featuring the stylish black/bezel look such as the popular 999. The AU-7900 had some superior features such as load impedance selector and two phono inputs, Sansui’s exclusive TTC (triple tone controls) and a separations rear switch.


F-2596 Motherboard

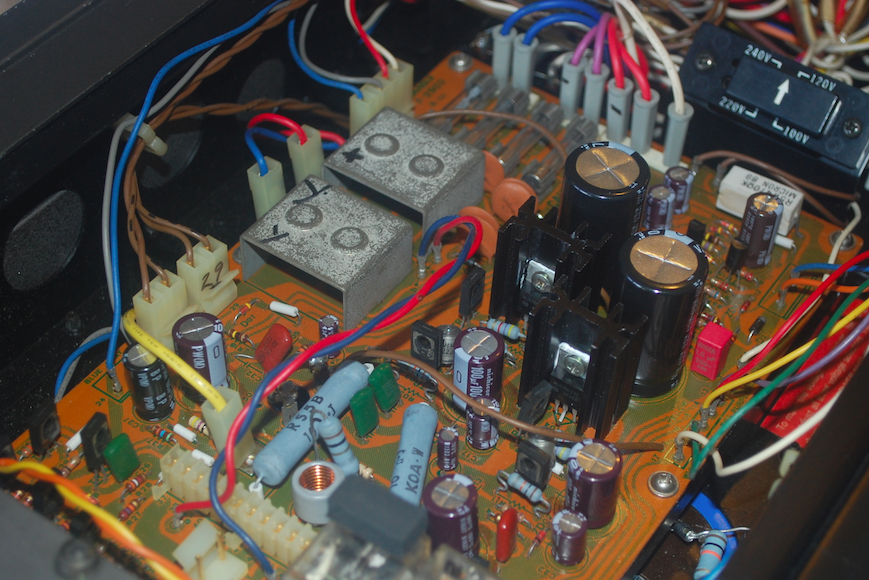

The mains filter, protection and driver stages are all located on the F-2596 motherboard as outlined below;

Section I: Ripple Filter/Protection
The AU-7900 has a unique rectification stage utilizing a standard full-wave bridge for the Mains rectification and a unique 3-Phase rectification for the -/+50V regulated rails The protection circuit incorporating a DC devotion and thermal discrepancy protection.

All of the 3-phase diodes were upgraded to Ultra-Fast, Soft Recovery Vishay axial diodes. VD varistors were replaced with modern Vishay 4148 general axial diodes and a MUR type TO-220 diode. New low impedance Nichicon PW capacitors with an increase in operating voltages.


BEFORE

AFTER

Hardware
The original 15,000MFD capacitors were increased to 18,000MFD computer-grade Nippon Chem-Con capacitors for better filtering/reserve capacity




Section II: Driver
The driver stage employs a shared heatsink for the output driver stages devices in a DC OCL output array.

The common emitter dual PNP devices were replaced with 1% matched low noise TO-92 Fairchild devices as boded below. Associated TO-92 devices were replaced with low noise TO-92 Fairchild type and high-seed ZTX type. Fusible resistors were replaced with 1/2 watt KOA and new precision Bourns potentiometers.


New Dual PNP Boding

Electrolytic capacitors were replaced with audio grade KT/KA  and low impedance Nichicon capacitors with an increase in operating voltages. High grade WIMA polypropylene film capacitors were also installed.



BEFORE

AFTER


Bias Confirmation

F-2599 Motherboard
This stage houses both secondary PS and RIAA Phono supply.

Section I: Reg. PS
The secondary PS establishes the regulated +22/-29Vdc rails for the AF front end.

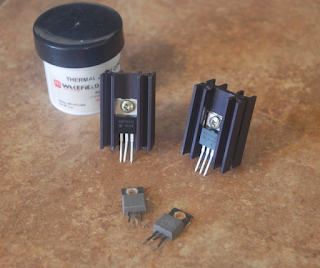

Both regulators were replaced with a modern, robust Fairchild TO-220 device thermally coupled with new Wakefield fully synthetic compound, new low noise TO-92 Fairchild devices were also installed.


New low impedance Nichicon PW capacitors were installed with an increase in operating voltages.


BEFORE

AFTER

-29/+22Vdc Confirmation

Section II: RIAA PHONO
The RIAA stage employs a NFB and only -/+0.3dB Curve RIAA which is quite impressive.

The input film was upgraded to a high grade MKP polypropylene film capacitors, as well as new high grade WIMA polypropylenes. New low impedance Nichicon PW’s were installed with an increase in operating voltages and low noise modern TO-92 Fairchild devices.


BEFORE

AFTER


RIAA Diff Matching

F-2610 & F-2611 Tone / Filter CTRL
The AU-7900 employs a simple common emitter differential and npn/pnp output stage with the “exclusive” Sansui Triple Tone Control circuit.

F-2610
For proper cleaning the controls and volume potentiometer were removed and Caig Labs D5/F5 treatments applied.


High grade WIMA polypropylene films and audio grade MUSE Bipolars Nichicon capacitors were installed as well as KT/KA audio grade Nichicons with an increase in operating voltages. All new small signal low noise TO-92 Fairchild devices installed.


BEFORE

AFTER


F-2611
The Filter control electrolytic were replaced largely with high grade WIMA polypropylene films and audio grade KT/KA and VP Bipolar Nichicons with an increase in operating voltages. New small signal low noise TO-92 Fairchild devices installed.


BEFORE

 AFTER

AUDIO NOTIZEN



Wednesday, February 21, 2018

R. Bourdon Sansui G-22000


SANSUI G-22000 Receiver


Today were showing off a recent customers Sansui G-22000 Receiver Restoration. According to Sansui, their approach to the design intentions of the G-22/33K receiver was musical reproduction. Their design concept revolved around what Sansui called the best “test instrument ever invented-the human ear.”


The G-22/33000 receivers have a unique construction, by separating the actual driver/power supply and front end AF/RF stages. The rear of the unit houses an active fan in an attractive Noir-Decco aesthetic, also containing two separate wound toroidal transformer and the separate AC/DC power supplies.  The front end houses the entire AF and RF circuits. Each unit can be operated separately but not independent as the rear driver section  has a 30V starter via the umbilical connector for the soft start/power circuit.


F-2819 AF PS
The G-22000 features three separate power supplies, one for the front end Pre-Amp and Tuner assembly and two independent power supplies for each driver channel! The front end Power supply is connected to the rear assembly via an umbilical connector that supplies an initial 30V source to the soft start relays sending power to the toroidal.

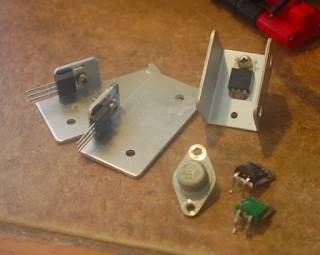

One of the biggest upgrades to a power supply is updated the old worn out TO-220 power regulators, these often show significant heat wear on the PCB due to overwhelmed TO-220’s. Each of the original 2SB/SD devices were replaced with robust, heavy duty On-Semi MJE TO-220 NPN/PNP devices with new Wakefield Synthetic thermal compound.  Original 10D1/2 diodes were replaced with UF (Ultra-Fast), Soft Recovery  Fairchild axial diodes 400X series. All of the small signal devices were replaced including the somewhat fault prone 2SC945 to a better TO-92L Fairchild device for  better dissipation. All 2071/939 devices were replaced with power supply/heavy voltage oriented MJE3XX series TO-126 Fairchild device. The original relay was replaced with a low noise Omron MY4 type.



New TO66/TO220 Regulators installed

BEFORE

 AFTER




33/13Vdc Rail Confirmation



F-2093 & F-2092 DRIVER PS / PROTECTION
The separate driver power supplies are derived from two separate isolated toroidal power transformers and two independent power supply, rectification stages. These assembly also house the driver protection stages and initiated vie the front end 30V trigger to the soft start relays.  The G-22000 / 33K features a quad protection circuit; Over-current Detection, Output Short detection, thermal run away and a DC Deviation detector.

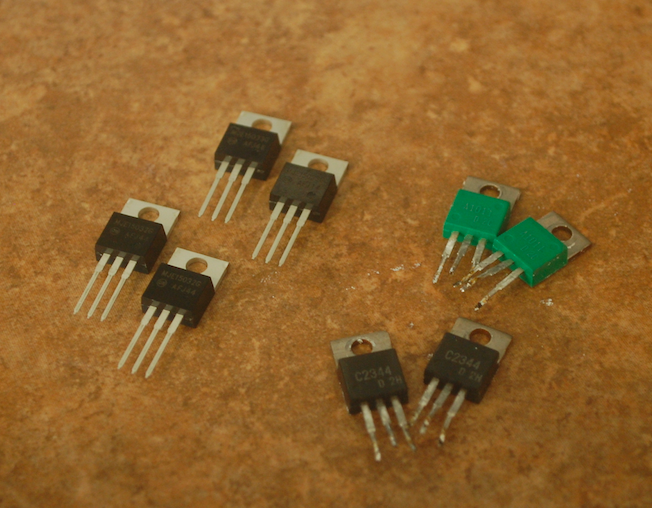

.Similar to above each assembly houses two and three 2SD/2SB TO-220 regulator which were all replaced with a heavy duty, robust On-Semi MJE TO-220 regulators with new thermal compound applied. Remaining 945 type devices were replaced with a new better handling TO-92L Fairchild NPN devices. All remaining 939 and 2071 devices were replaced with new heavy voltage oriented TO-126 MJE3XX Fairchild devices. Original 10D1/2 diodes were replaced with UF (Ultra-Fast) Fairchild axial diodes 400X series.



All the capacitors were replaced with Nichicon VP Bipolar and low impedance Nichicon PW capacitors with an increase in operating voltages.  New high grade WIMA polypropylene films were also installed as well as removing the 4.7OHM fusible resistors and installing 1/2W KOA carbon films. In this particular unit some joke of a shop had replaced the meter reed R27 Vf resistor with a 07.00OHM(!!!) when it should be a 330OHM for the 24V reed relay…



BEFORE


AFTER




FILTER CAPACITORS
The original rectification stage uses two 15,000MFD capacitors a side with a 1MFD bypass capacitor installed (+10KPARA OHM.) New computer grade Nippon Chem-Con 22,000/100V filter capacitors were installed with high grade 1MFD MKP polypropylene film bypass capacitors and heavy 3+Watt 10K Vishay resistors.




-/+80V Rail Confirmation

Its important to note the 3.9OHM cement in rush resistor, these often fail with related output devices. A new 3.9OHM 35Watt cement wire-wound resistor was replaced out of pre-caution.

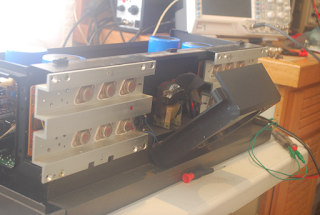

At this time the fan assembly, part of the rear driver assembly, was removed and cleaned for better airflow and unrestricted rotation. The TO-3 output bank shield was removed and outputs inspected.





F-2900 & F-2901 DRIVERS
One of the biggest highlights of the driver design is the integration of Sansui’s proprietary Diamond Differential DC Circuit.  The drivers use a dual JFET 2SK129A as a differential gain stage to the diamond differential (proprietary design) to a push-pull driver compliment. The output is in a OCL- darlington configuration.

As with the PS stages, the 939/2071 devices were replaced with new heavy voltage oriented TO-126 Fairchild NPN/PNP devices. All remaining 872/1175 devices were replaced with modern, low noise Fairchild TO-92 NPN/PNP devices and remaining drivers replaced with a heavy duty, robust TO-220 On-Semi MJE series devices with new thermal compound applied.



New precision Bourns trimmers installed for bias/offset along with new 4148 axial modern diode replacements. Mylar films were updated to high grade WIMA polypropylene film capacitors with an increase in the coupling stage to .1MFD/250V high grade polypropylene film capacitors. Remaining electrolytic were replaced with Nichicon  low impedance, high temp (105) PW capacitors with an increase in operating voltages, 1MFD> were all replaced with high grade WIMA polypropylene film capacitors.


BEFORE

 AFTER




JEFT Boding/Confirmation


**MV13 Diode on drivers custom made replacements (x8)


F-2892 PEAK METER

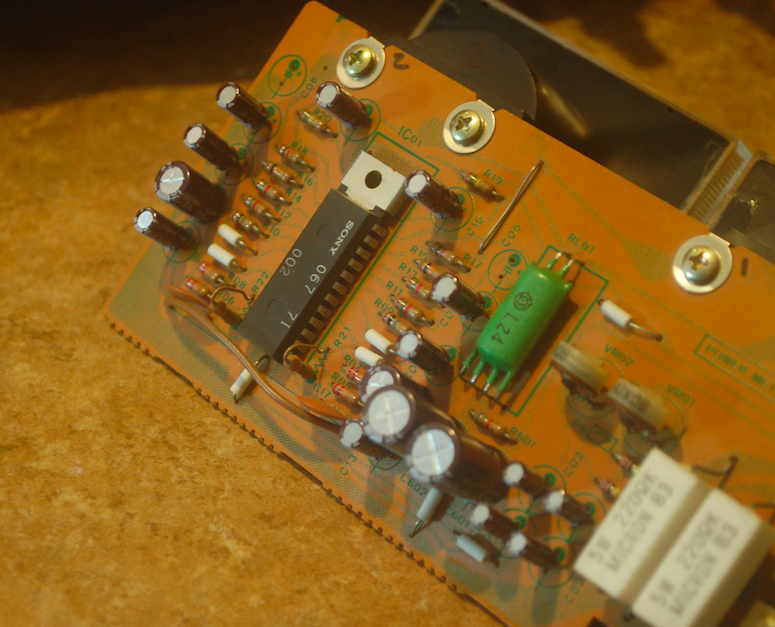

Touted as featuring “professional grade” Meters, the G-22K has a reliable Peak to Peak (Pvv(rms)) meters from .1-600W/rms.   The control is a Sony CX-067 IC (also used in the TOTL TA-E7!) Failures of this stage often relate to the 24V R27 resistor for the reed relay or bad CX IC’s.


New low impedance high temp (105C) Nichicon PW capacitors with an increase in operating voltages. At this time each meter was removed, cleaned and the gimbal checked for proper deflection action.


BEFORE

AFTER


New custom SMD type LED’s were installed for the dial/meter displays.


F-2890 TONE CONTROL AMP
The tone controls after a three way nominal Bass/Mid and treble attenuation with a featured Flat bypass tone switch for a linear response. The Tone control assembly uses a ribbon feed to connect the actual tone potentiometers which were cleaned and lubricated along with all other switches using Caig Labs D5/F5 products.

Different than above due to application the 2071 devices were all replaced with a audio centered, low distortion TO-126 Fairchild NPN devices along with the 872 devices to modern low noise Fairchild TO-92 PNP devices.

All of the electrolytic were replaced with a audio grade Nichicon KT, low impedance PW's and VP Bipolar with an increase in operating voltages. All the original mylar were replaced with a high grade WIMA polypropylene film capacitor.


BEFORE

 AFTER


F-2899 FLAT AMP
Similar to the RIAA EQ, the Flat AMP response/current stage has a left and right separate assemblies for decreased noise and a main Motherboard point.

The F-2899 Flat amp assembly uses a 2SK129A JFET differential gain stage in a push-pull output configuration for a totally linear response output.

The 220OHm pots were replaced with precision Bourns trimmers as well at all small signal 872/1175 devices to modern, low noise TO-92 Fairchild devices.  The driver 939/2071 devices were all replaced with audio centered, low distortion MJE3XX NPN/PNP TO-126 devices.


The original mylar were all replaced with high grade MKP .22MFD polypropylene film capacitors along with high grade polypropylene WIMA film capacitors. Electrolytic’s were replaced with Fine Gold audio grade Nichicon 100MFD capacitors with an increase in operating voltages.


BEFORE

AFTER



Foil Side PCB

F-2880 RIAA EQ (PHONO)
Extensive design went into the RIAA EQ stage, employing 13+ devices including a differential 2SK131 dual JFET. All configured with a constant current source and bootstrapped (piggybacked.) The RIAA EQ has a reported response at 87dB S/N Ratio with +.2dB/-0 20Hz-20kHz

The large esoteric 4.7MFD film was replaced with a high grade 4.7MFD MKP polypropylene film capacitor which requires proper dressing and fitment to avoid any noise pickup or intrinsic potentials, remaining mylars were replaced with a high grade WIMA polypropylene film capacitor. The electrolytic were all replaced with a audio grade Nichicon KT audio grade capacitor with an increase in operating voltages.



BEFORE

AFTER



Foil Side PCB



F-2284 & F-2888 MotherBoards
As done above, the F-2884 motherboard had both 470MFD capacitors and coupling .1MFD and .047  mylar films replaced with a high grade polypropylene film capacitors and new low impedance Nichicon PW with an increase in operating voltages.


The F-2888 motherboard had both 470MFD capacitors and coupling .1MFD mylar films replaced with a high grade MKP polypropylene film capacitors and new low impedance Nichicon PW with an increase in operating voltages.


F-2886 VOLUME / F-2885 MIC Amp
The volume attenuator employed in the G-22000 and G33K is of superb design, a potted, 32-stepped precision 4-gang potentiometer housed on the MicAmp circuit.


The volume pot was desolder to proper cleaning with the protective shield removed and lubricated with Caig Labs products. The Micamp circuit had the original 872/1775 devices replaced with modern low noise Fairchild TO-92 NPN/PNP devices. The electrolytic were replaced with a audio grade Fine Gold and KT Nichicons and low impedance PW Nichicon with an increase in operating voltages and high grade WIMA polypropylene film capacitors.


BEFORE

 AFTER

The F-2885 Mic amp stage had the attenuator cleaned and lubricated. The original 872 device was replaced with a modern, low noise Fairchild TO-92 PNP and electrolytic to a audio grade Nichicon KT/ low impedance PW’s with an increase in operating voltages along with a high grade WIMA polypropylene film.
